WATERPROOFING CHEMICAL

CIS C129 HYBRIDCRETE

ACRYLIC POLYMER MODIFIER FOR CEMENTITIOUS COMPOSITIES
PRODUCT CATEGORY: CEMENT MODIFIER AND COATING

Product Discription

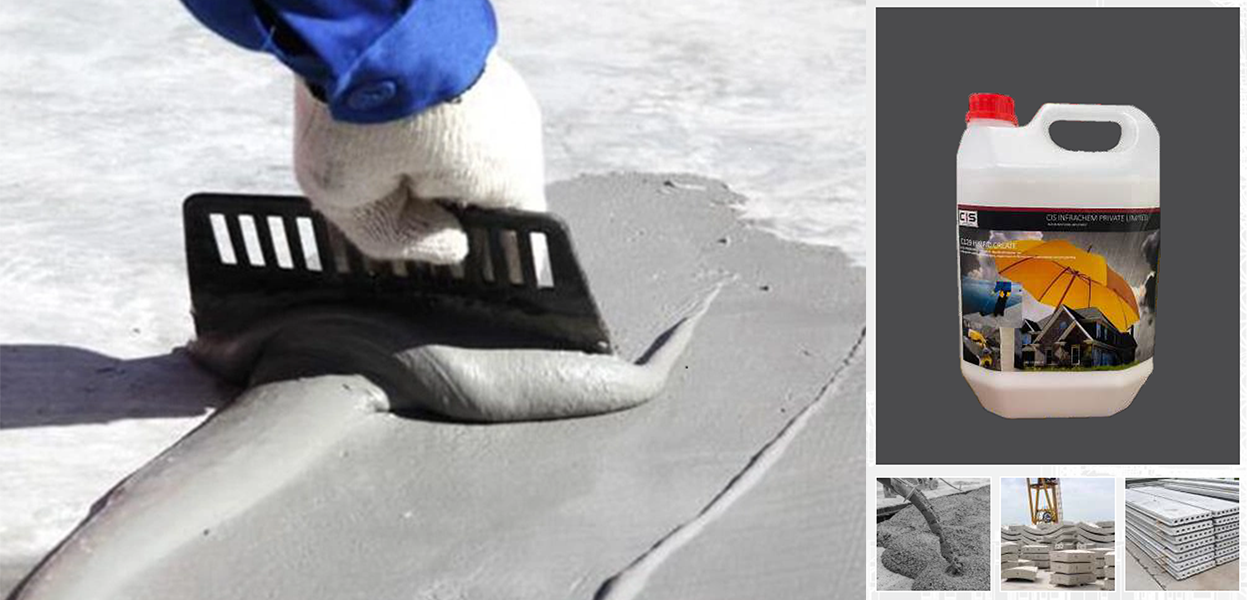

C129 HYBRID CREATE is a white liquid Acrylic Polymer admixture for waterproof coating, bonding agent, repair-mass-in-fill and non-shrink polymer cement grout system

---

Area of Application

• C129 HYBRID CREATE is recommended for use in the following areas of application
• Waterproof and damp-proof coating in the form of cement slurry/cement mortar
• As a bonding agent on cold/constructiopn joints
• Concrete repair as a patching mortar } Protective layer for cementitious surface
• Injection into concrete/rock structures in the form of cement slurry
• As a mortar or slurry coating for better resistant to chemical attack

---

Features & Benefits

• Good bonding properties
• Good as a waterproof coating
• Static cracks can be filled with mortar made with C129 HYBRID CREATE
• A good modifier to make repair mortar/concrete
• Durable to UV exposure
• Eco-friendly

---

Surface Preparation

Surface should be sound, clean of oil, grease, dust and other surface contaminants. Prepared surface should be thoroughly dampened with water preferably over night for application, as a repair plaster. For use as a bonding agent / waterproof coating, concrete or masonry surface must be in a saturated surface dry condition

Waterproof cement slurry

Mix 1 Litre of “C129 HYBRID CREATE” liquid with 2 Kg of fresh 43 or 53 grade OPC (do not use lumpy or air set OPC or PPC) thoroughly to make smooth brushable consistency. Such mixed material (say 3 Kg.) will provide the coverage between 1.5 m2 and 2.0 m2 depending upon surface texture/porosity on a prepared surface. The thickness varies from 0.9 to 1.1 mm

---

Products Information

Bonding coat between two courses of concrete/mortar

OPC = 1.75 Kg
Zone III Sand = 1.75 Kg.
C129 HYBRID CREATE = 1 ltr.
Mix to a smooth consistency and then apply by brush. Within 5 minutes of application start placing the concrete over it and compact the mass as usual within 45 minutes. Critical Cold joints/construction joints are not only be well bonded but also will not give rise to any future water leakage. 4.5 kg of mixed material will cover around 2.20m2 to 2.60m2 in single coat, which is recommended. The pouring of new concrete/ mortar should be completed within 45 minutes of Bond Coat application

Brush topping

Fresh O.P.C. = 1 Kg.
60/80 mesh quartz sand = 1 Kg.
C129 HYBRID CREATE = 0.60 Ltr.
Mix to a smooth consistency. Apply on a prepared surface by brush. Such 2.6 kg mixed material will provide coverage around 1.3 m2 to 1.7 m2 in two coats depending upon surface texture porosity. Thickness varies from 0.8 to 1 mm

Repair mortar

O.P.C. = 6 Kg.
Zone II sand = 15 Kg.
C129 HYBRID CREATE liquid polymer = 2 ltr.
Such 23 kg mixed material will provide coverage around 1.3 m2 to 1.7 m2 in two coats depending upon surface texture porosity. Thickness varies from 0.8 to 1 mm

Heavy-duty floor topping

O.P.C. = 3 Kg.
Zone II sand = 5 Kg.
C129 HYBRID CREATE = 1 ltr.
Such 9 kg mixed material will cover about 0.80 to 1.0 m2 surface of 4 to 5 mm thickness

Injection grouting

O.P.C. = 3 Kg.
C129 HYBRID CREATE = 1 ltr CIS Grout Mix = 30gm

Adhesive

O.P.C. = 3 Kg.
Zone III sand = 6 Kg.
C129 HYBRID CREATE = 1.40 ltr.
Such 10.40-kg mixed material will cover around 1.5 m2 to 2.00 m2. Thickness is about 3 mm.

---

Precautions & Limitions

Prepared surface should be thoroughly dampened with water preferably over night before any application

---

Packaging

5 ltr, 10 ltr, 20 & 200 ltrs. drums.

---

Shelf Life

12 Months from the date of manufactures in unopened containers stored at cool & dry place.

---

Storage

Store in Cool place under the shade

---
